B I O P H I L I C C O L L E G E
REVIT | POINTCLOUD | ENSCAPE
OBJECTIVE: Re-imagine Gallatin College East using laser scans. Address issues such as: limited parking, missing amenities, and maintaining a hands-on learning environment.
- Learn to create an as-built structure using a Pointcloud file as a reference
- Accurately reflect structure, fenestration, and materials existing in real life
- Include presentation boards for Precedence, Conceptual, Demolition, and Rendering phases
- Remodel Gallatin College East by utilizing existing structure or proposing a new structure
- My project focused on attaining grants to purchase the vacant property across the street and build anew
- Inspired by biophilic architecture and biomimicry, effort was made to incorporate both
- Accurately reflect structure, fenestration, and materials existing in real life
- Include presentation boards for Precedence, Conceptual, Demolition, and Rendering phases
- Remodel Gallatin College East by utilizing existing structure or proposing a new structure
- My project focused on attaining grants to purchase the vacant property across the street and build anew
- Inspired by biophilic architecture and biomimicry, effort was made to incorporate both

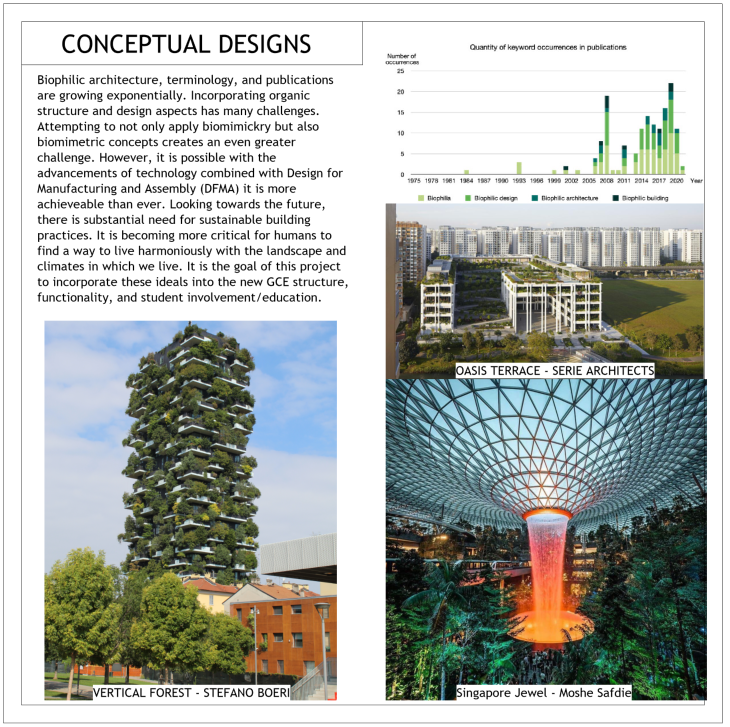

Conceptual Presentation Board

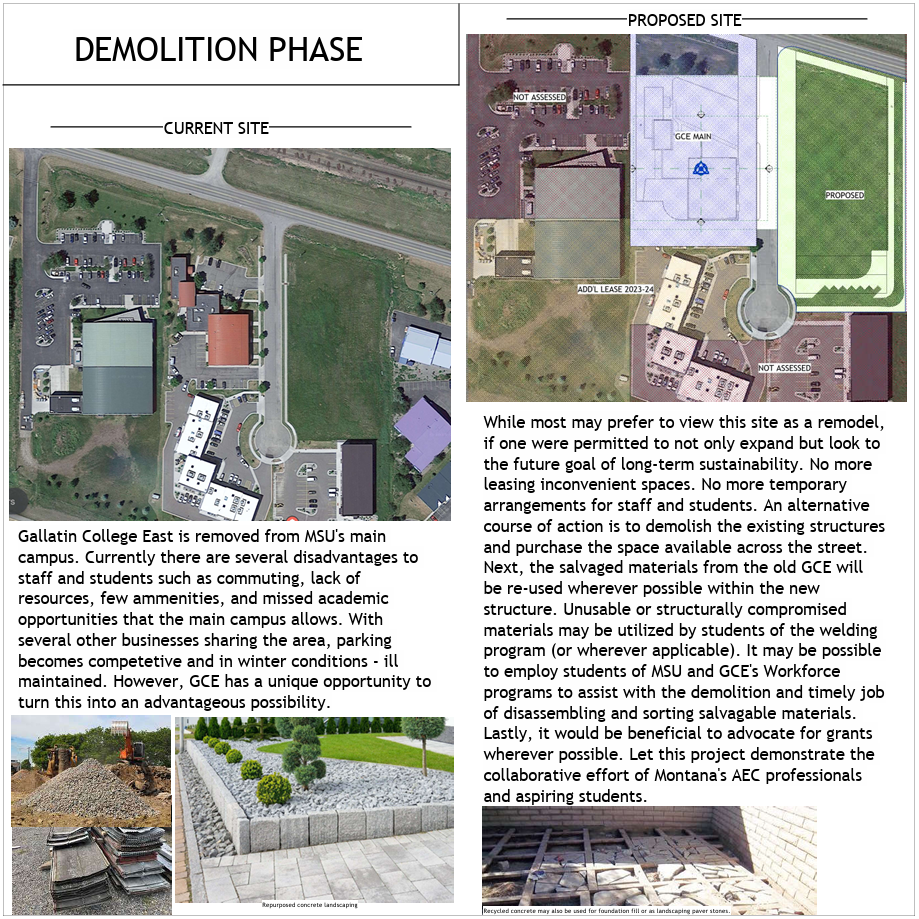

Demolition Proposal

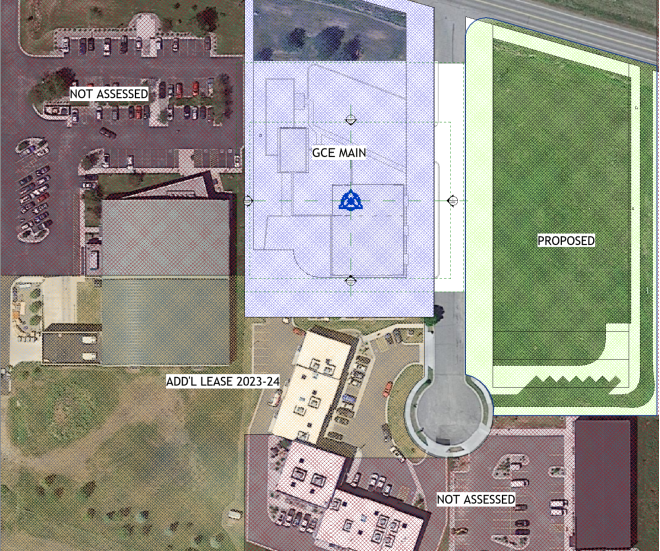

Site Analysis

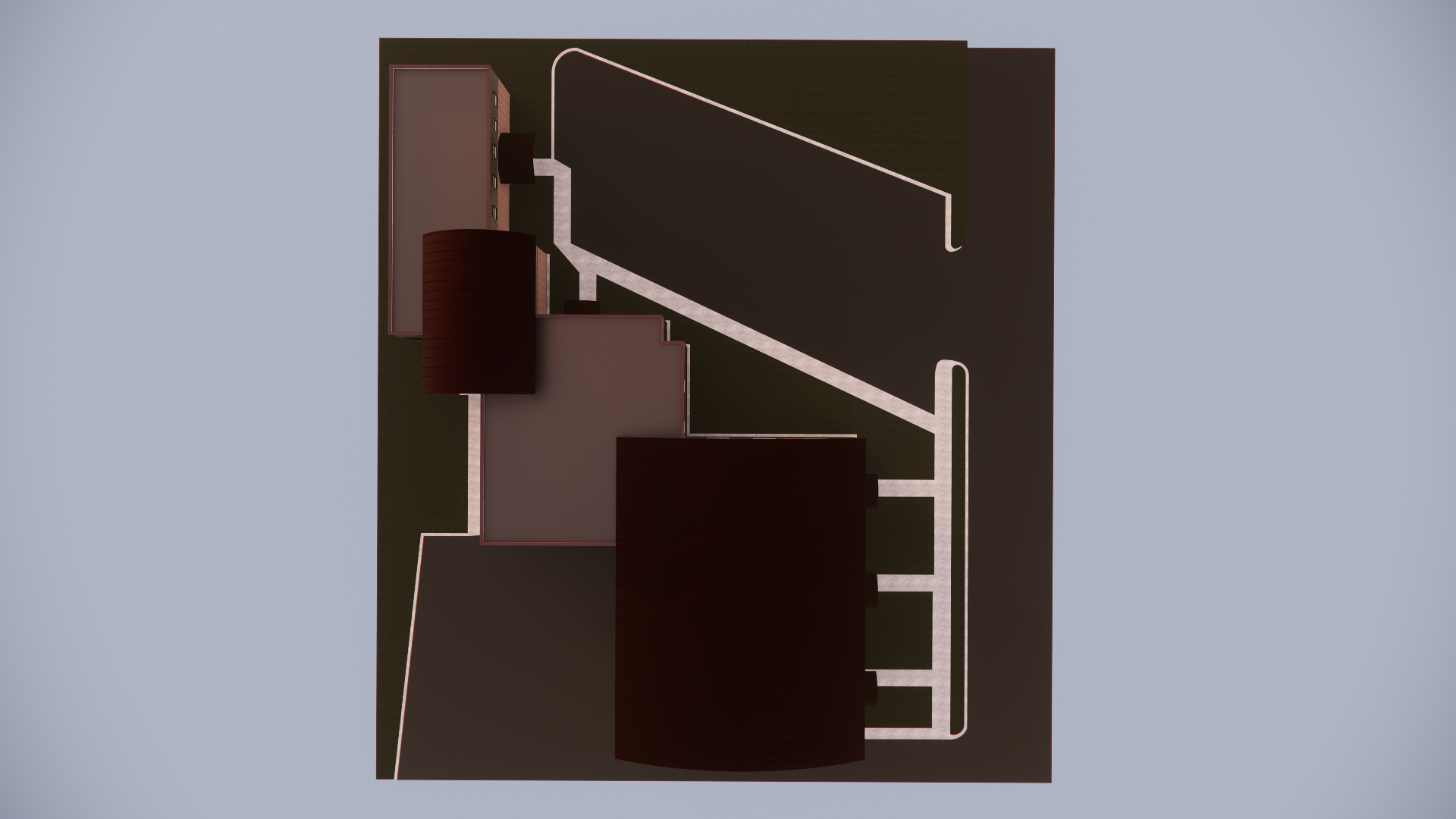

Gallatin College made to reflect Site Analysis

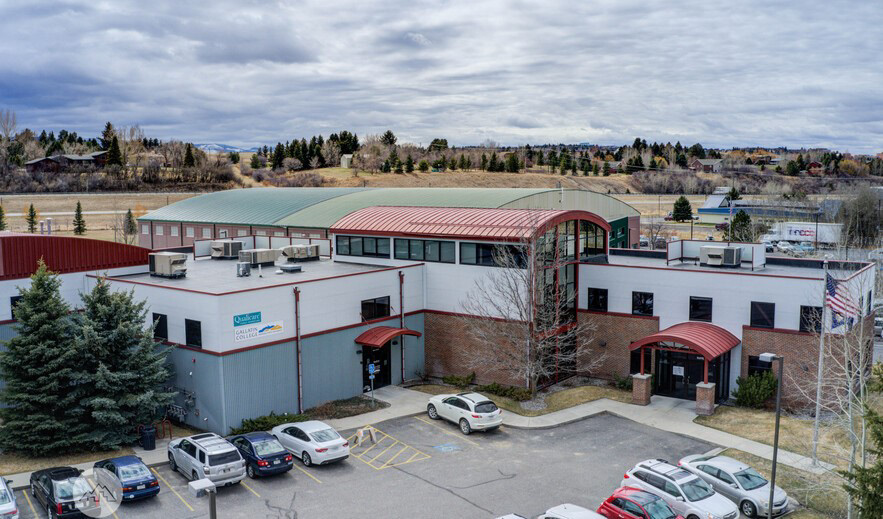

GCE - Existing Structure

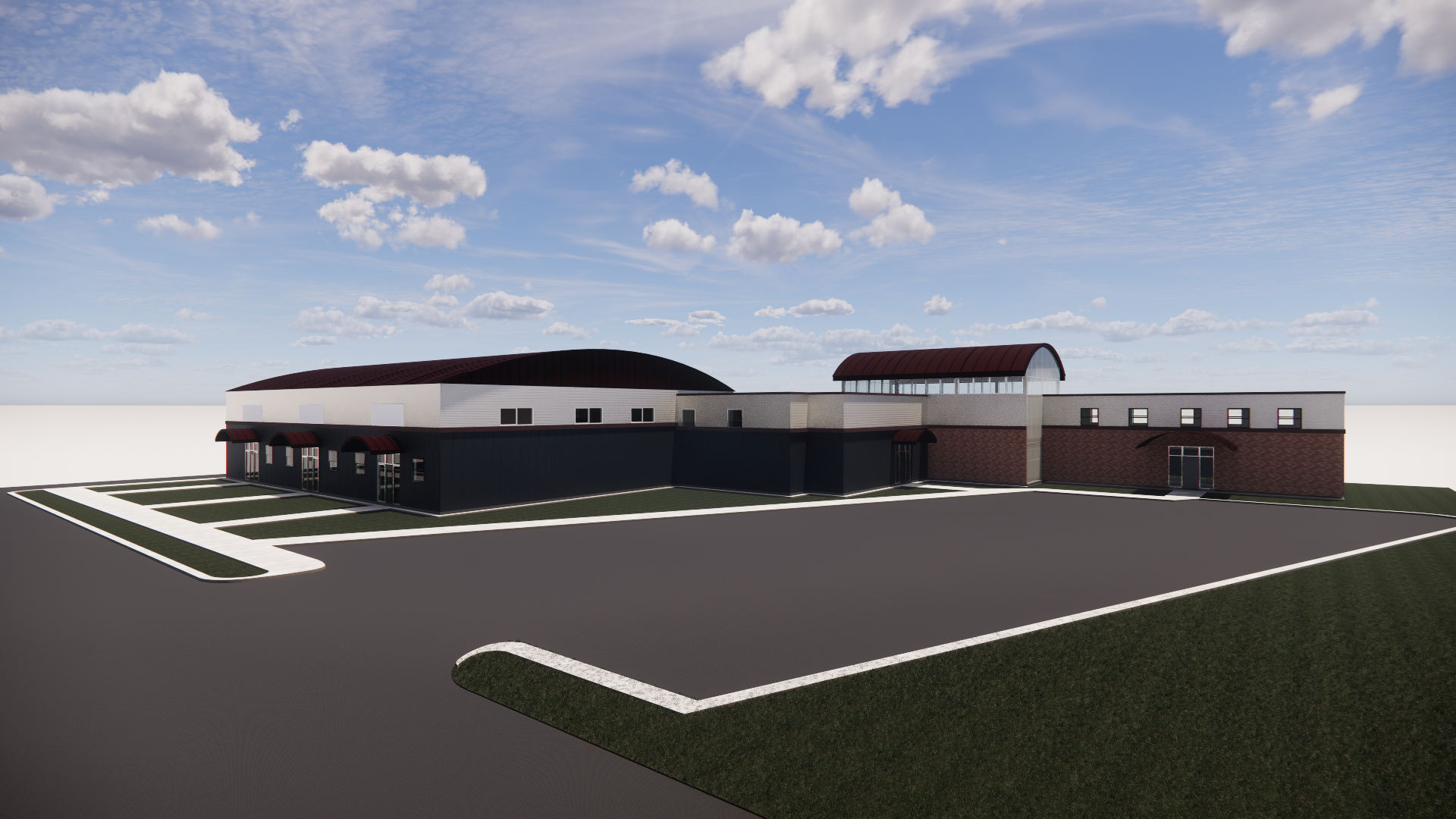

GCE - Existing modeled from pointcloud

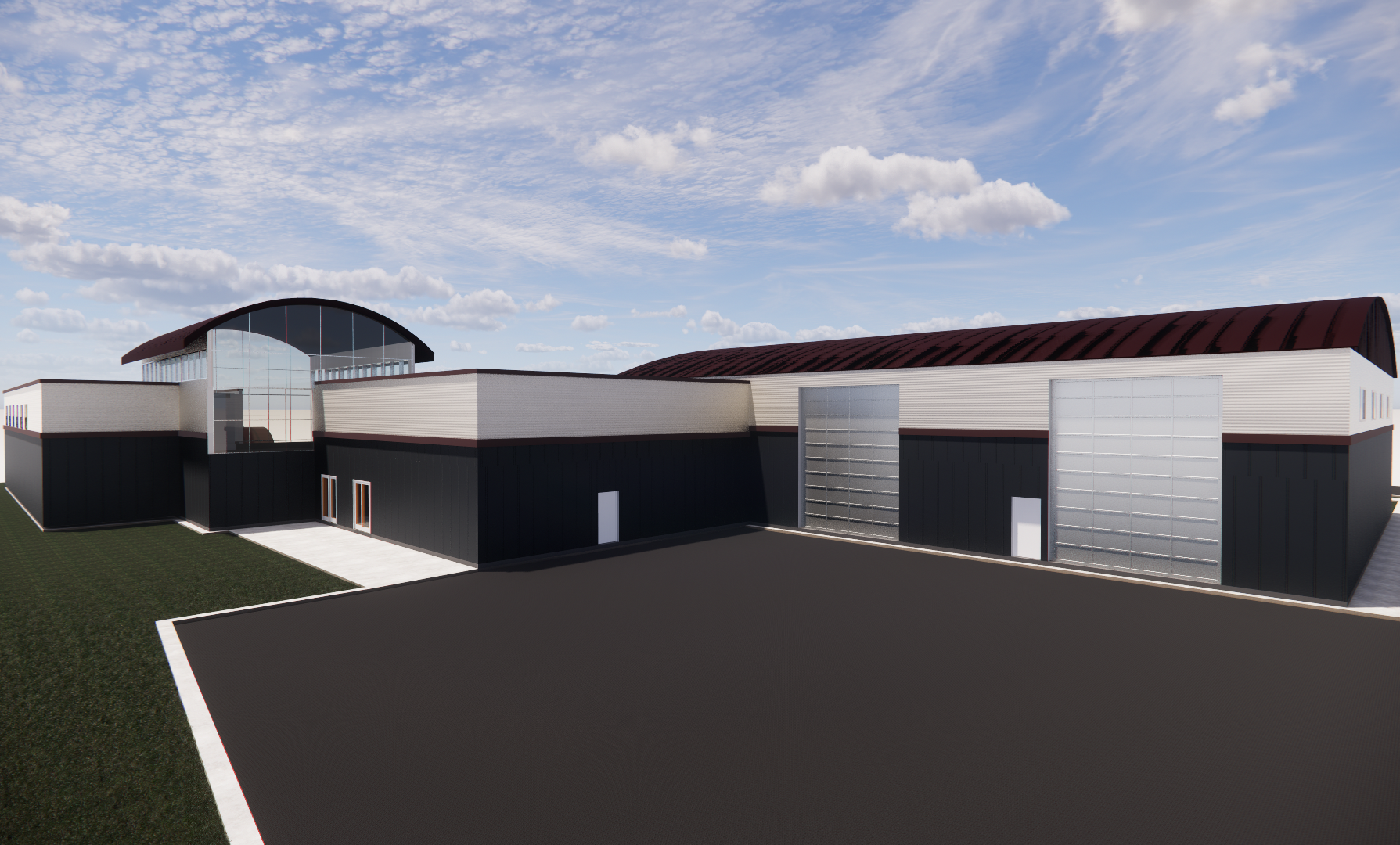

GCE - Shop Space

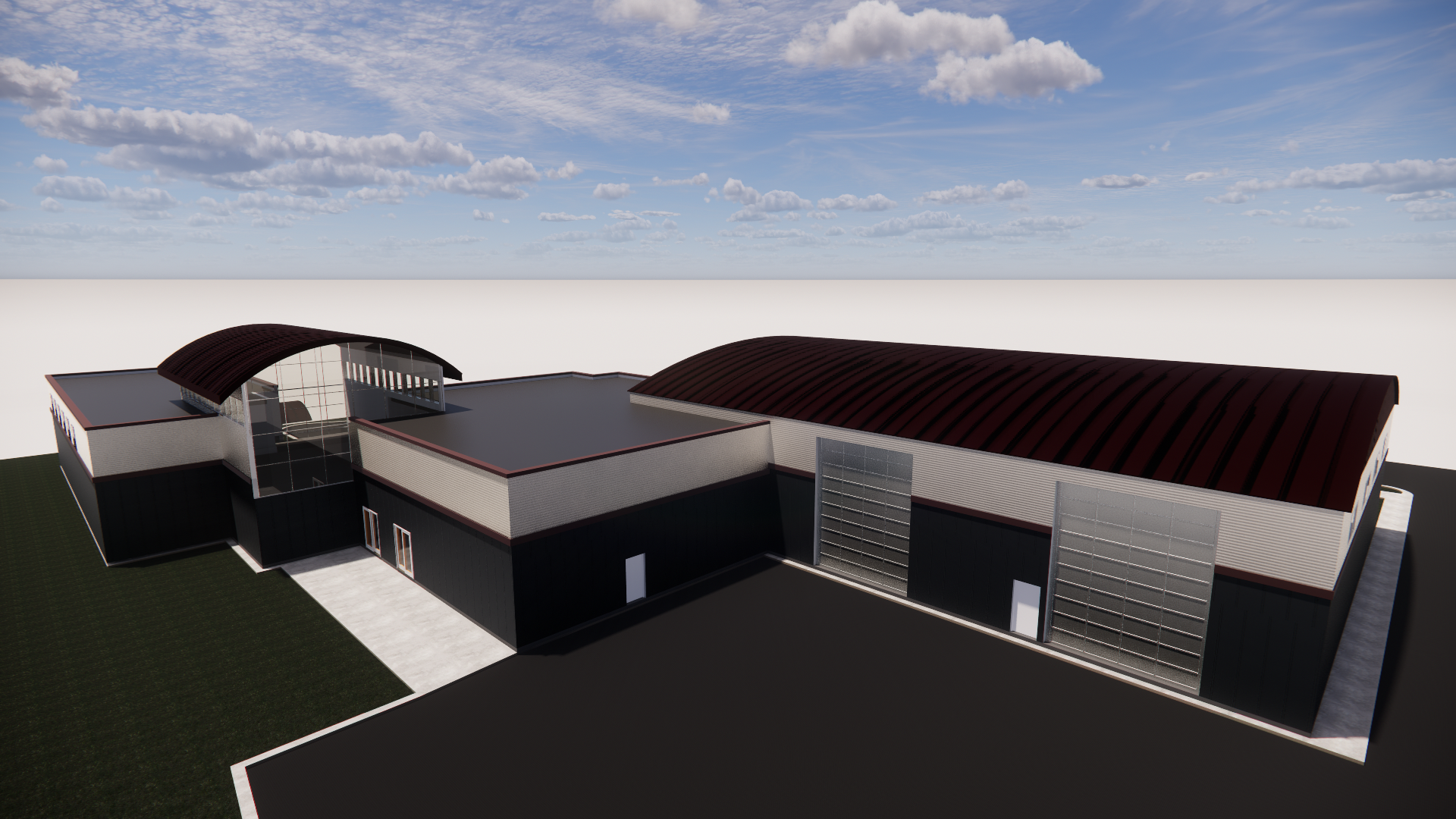

Welding, Machining, Fabrication, Construction classrooms

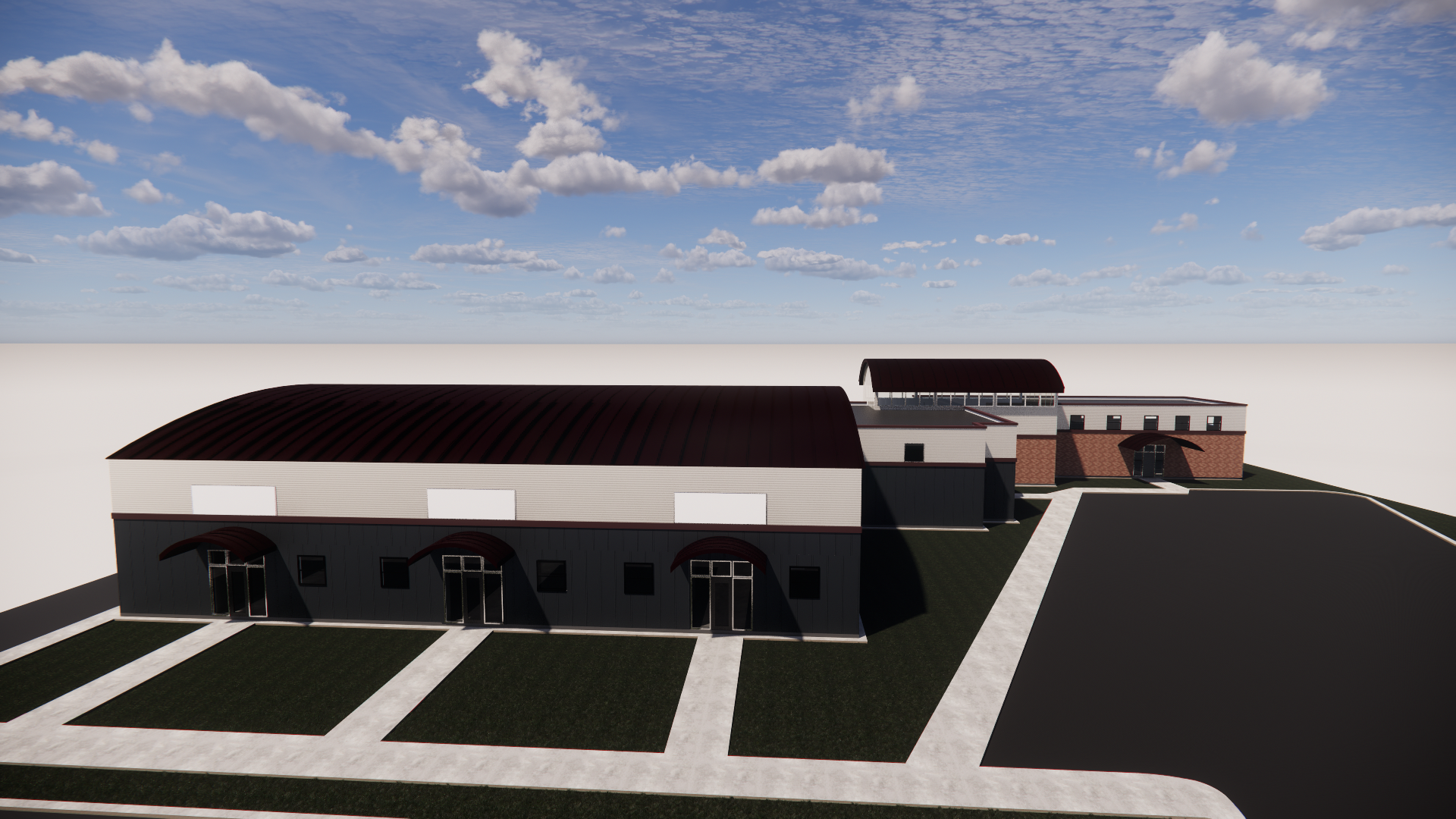

GCE - Entry

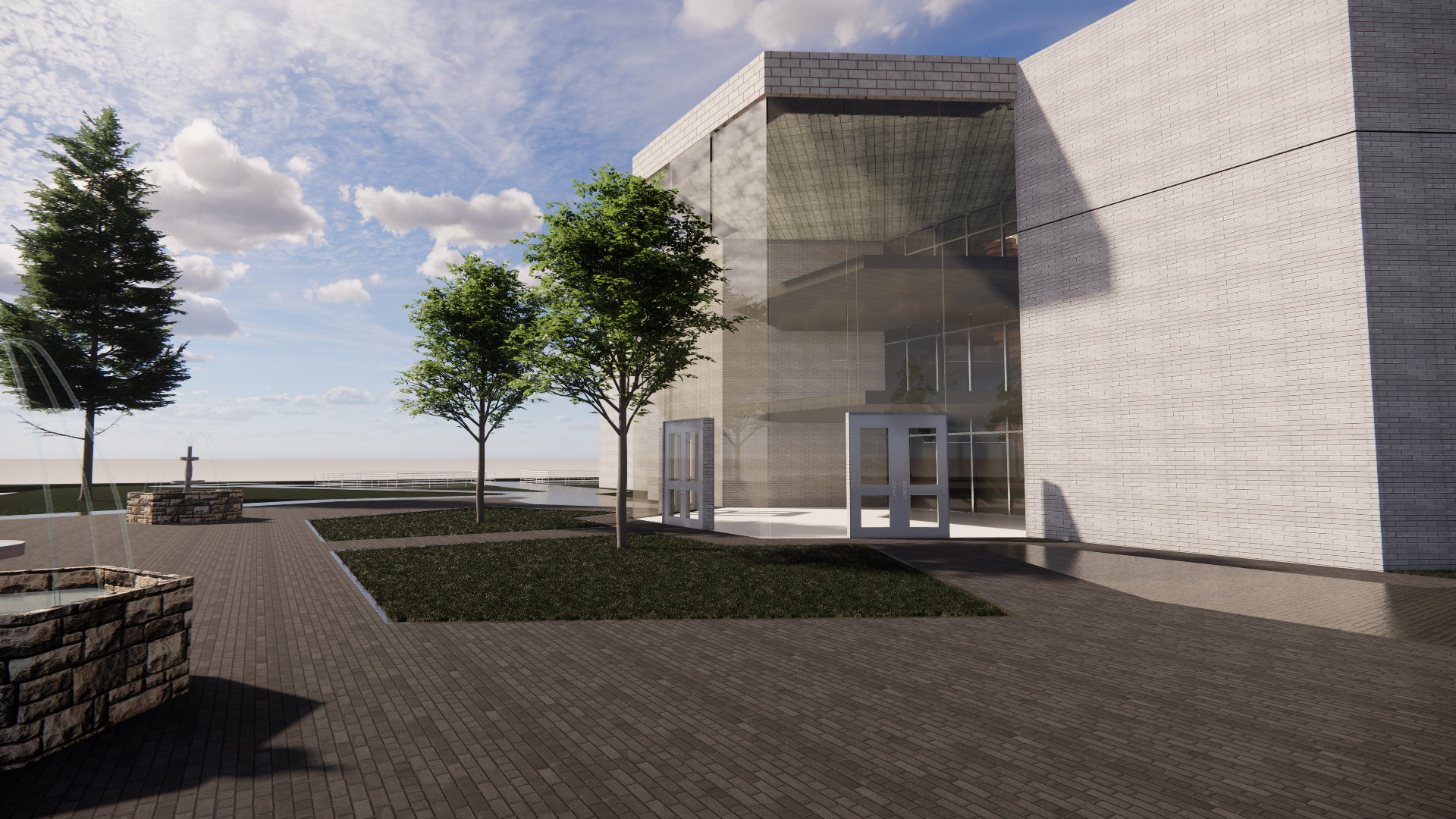

GCE - Proposed New Campus

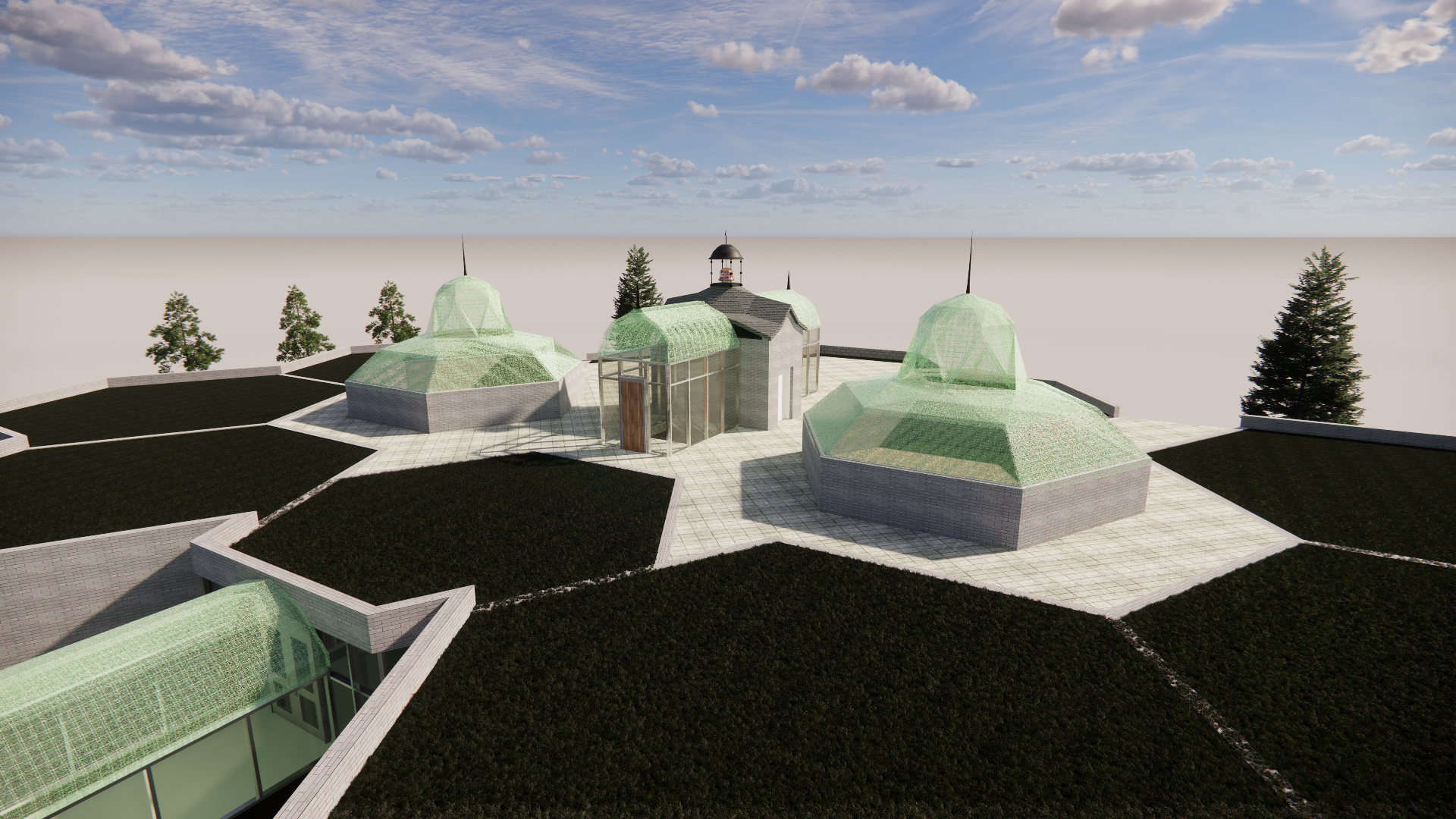

Experimenting with challenging roof-shapes

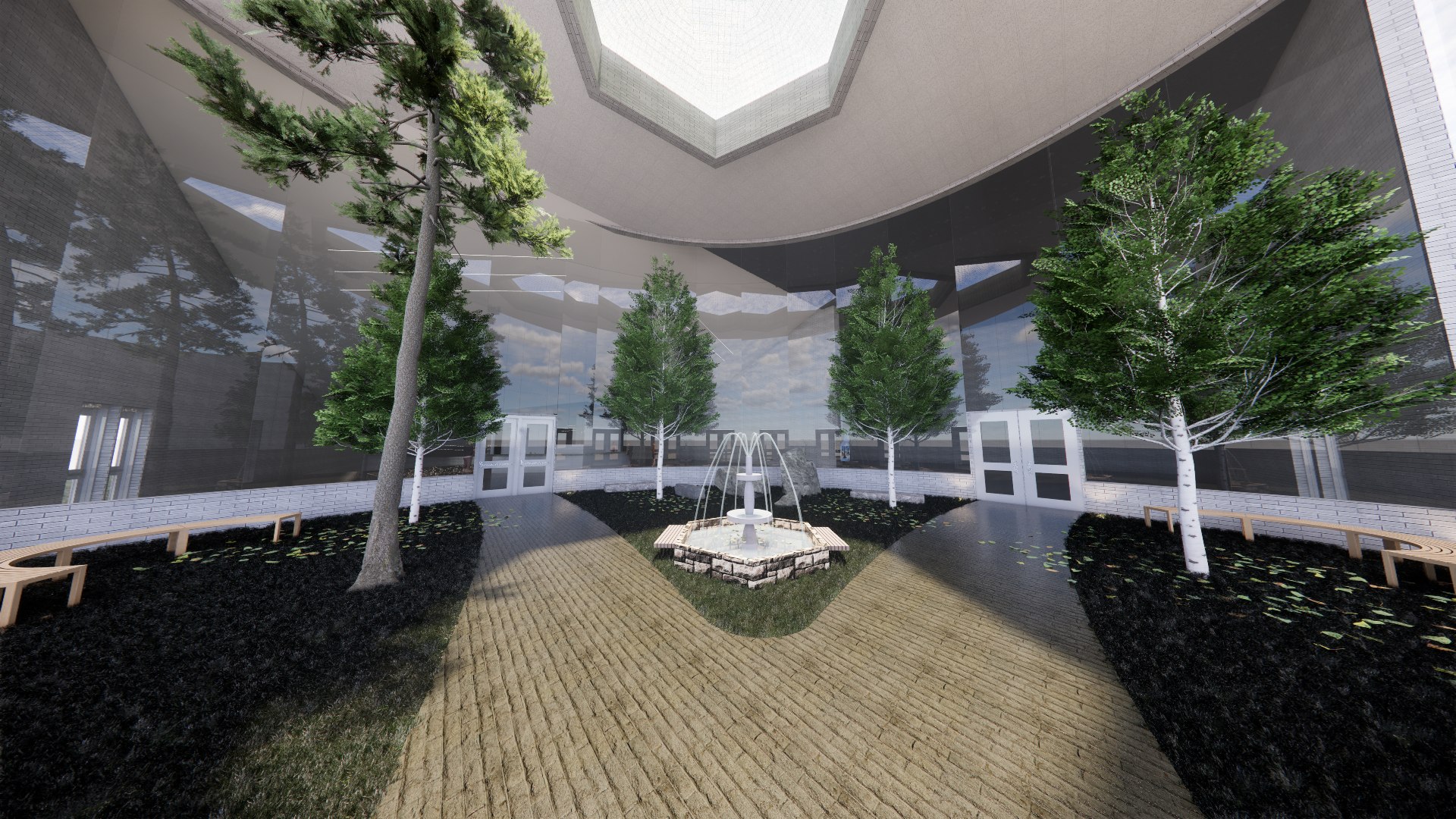

Terrarium Entry/Study Area

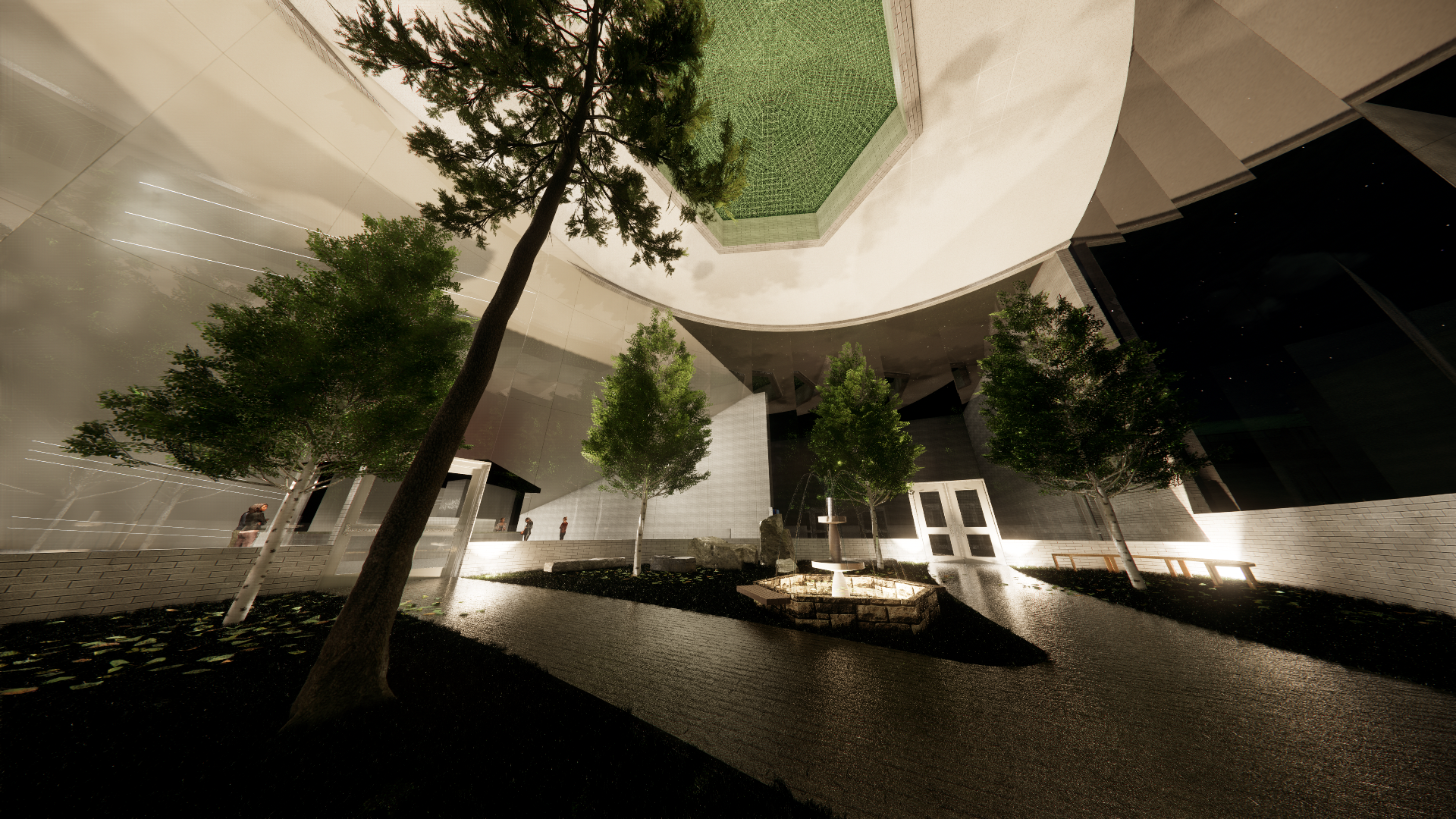

Experimenting with lighting features

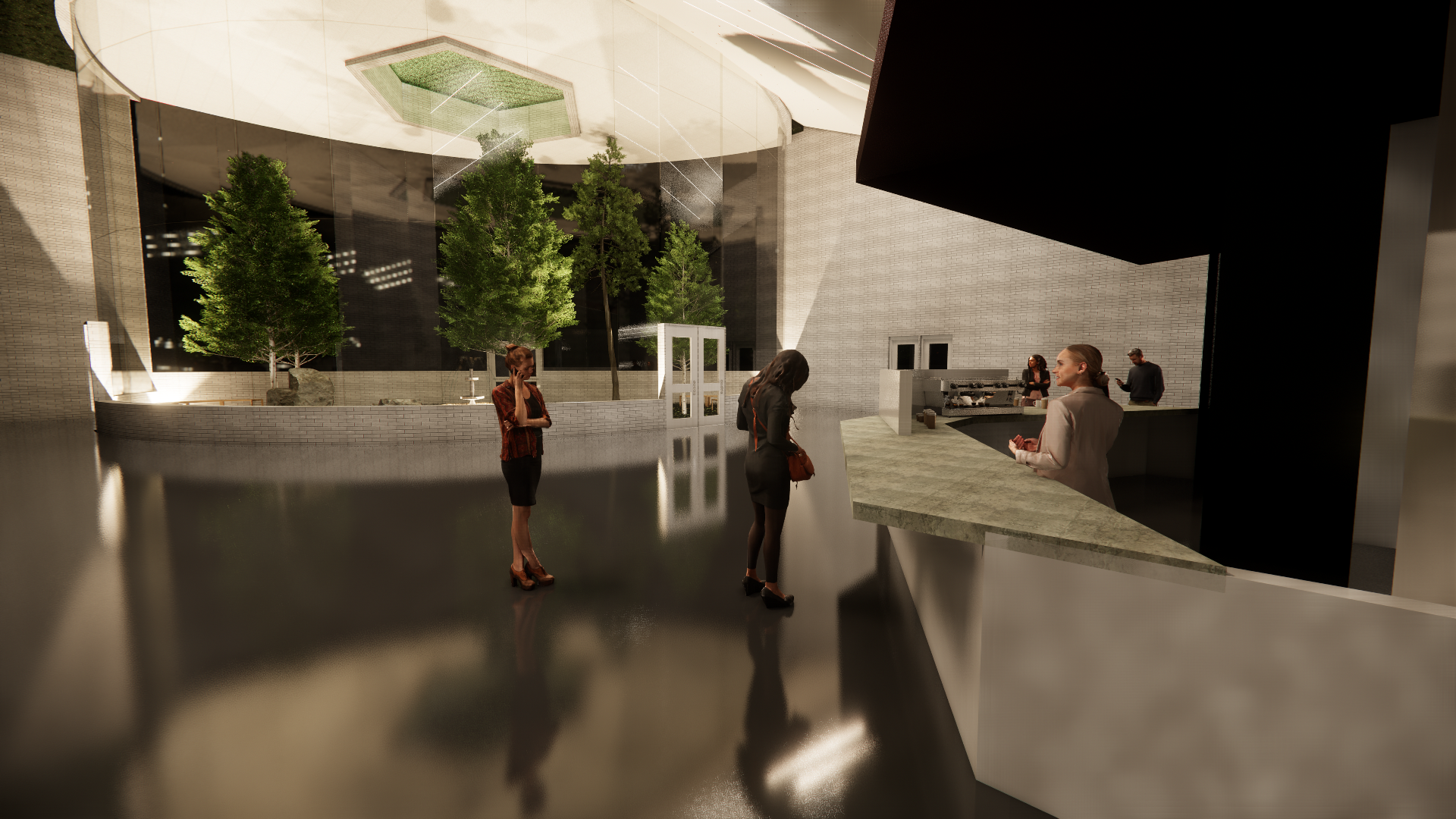

Addressing need for food available on-campus

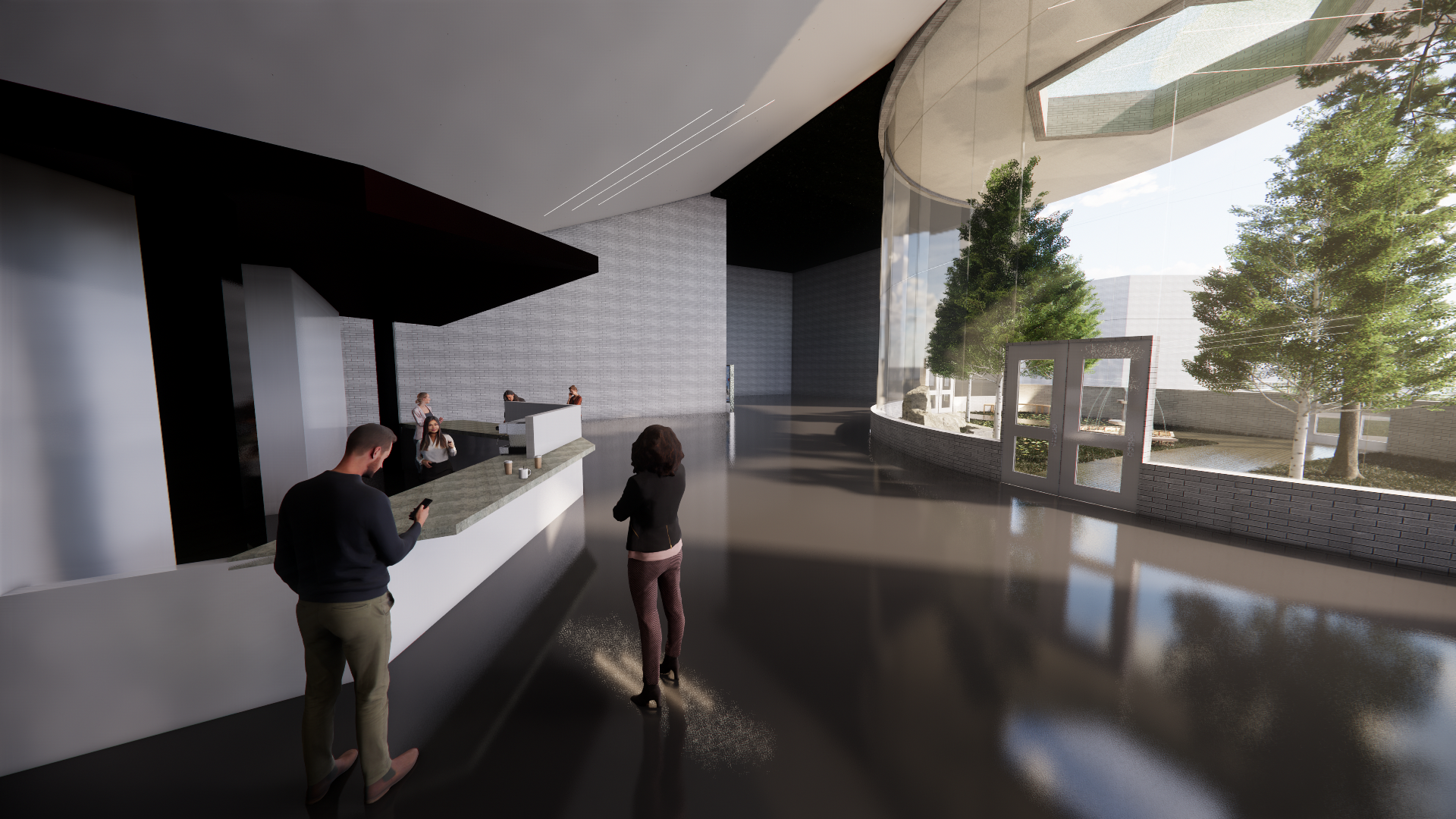

Cafe/Coffee Bar

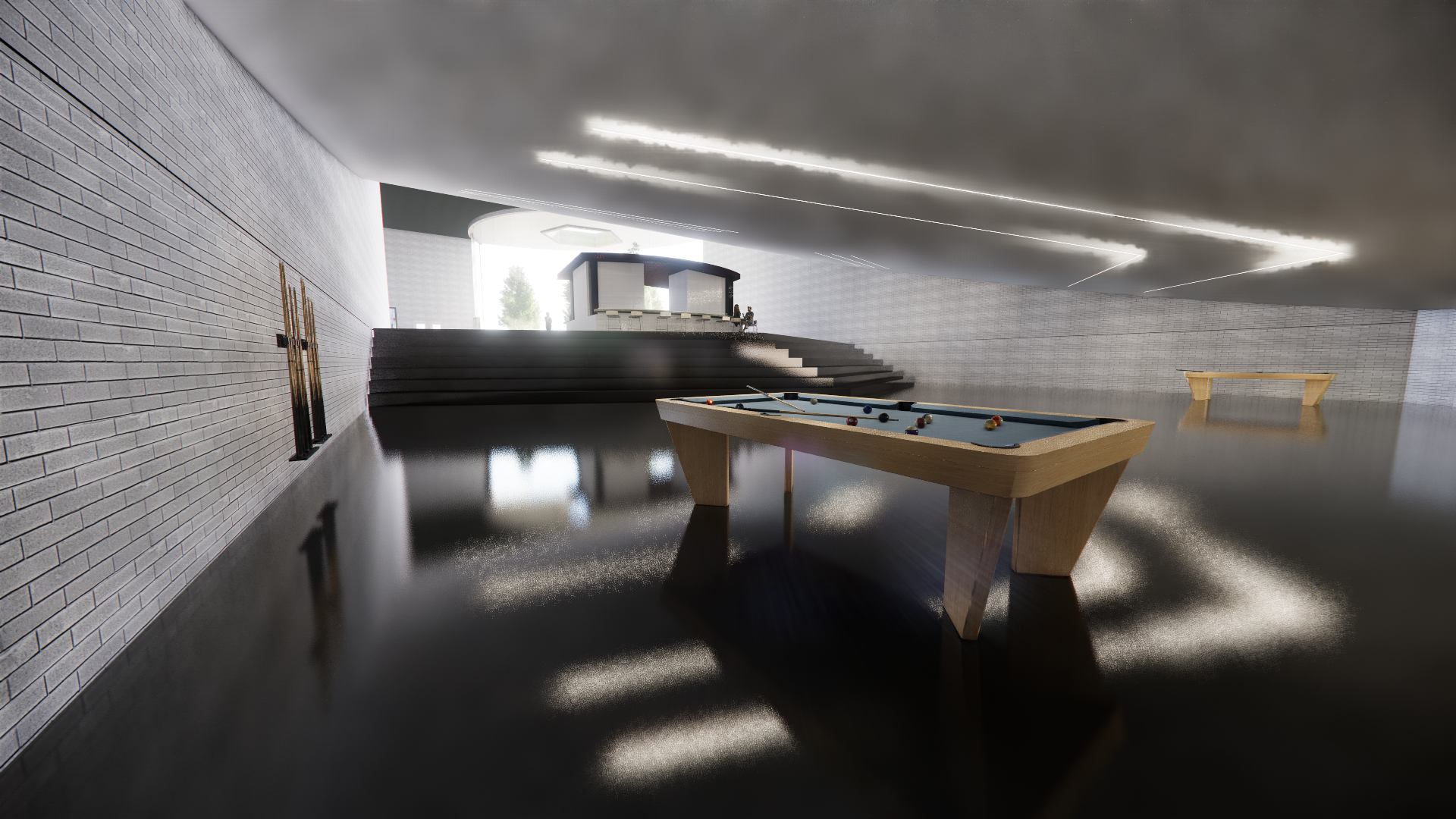

Student Lounge/Social Area
Green roof doubling as student lounge/study area

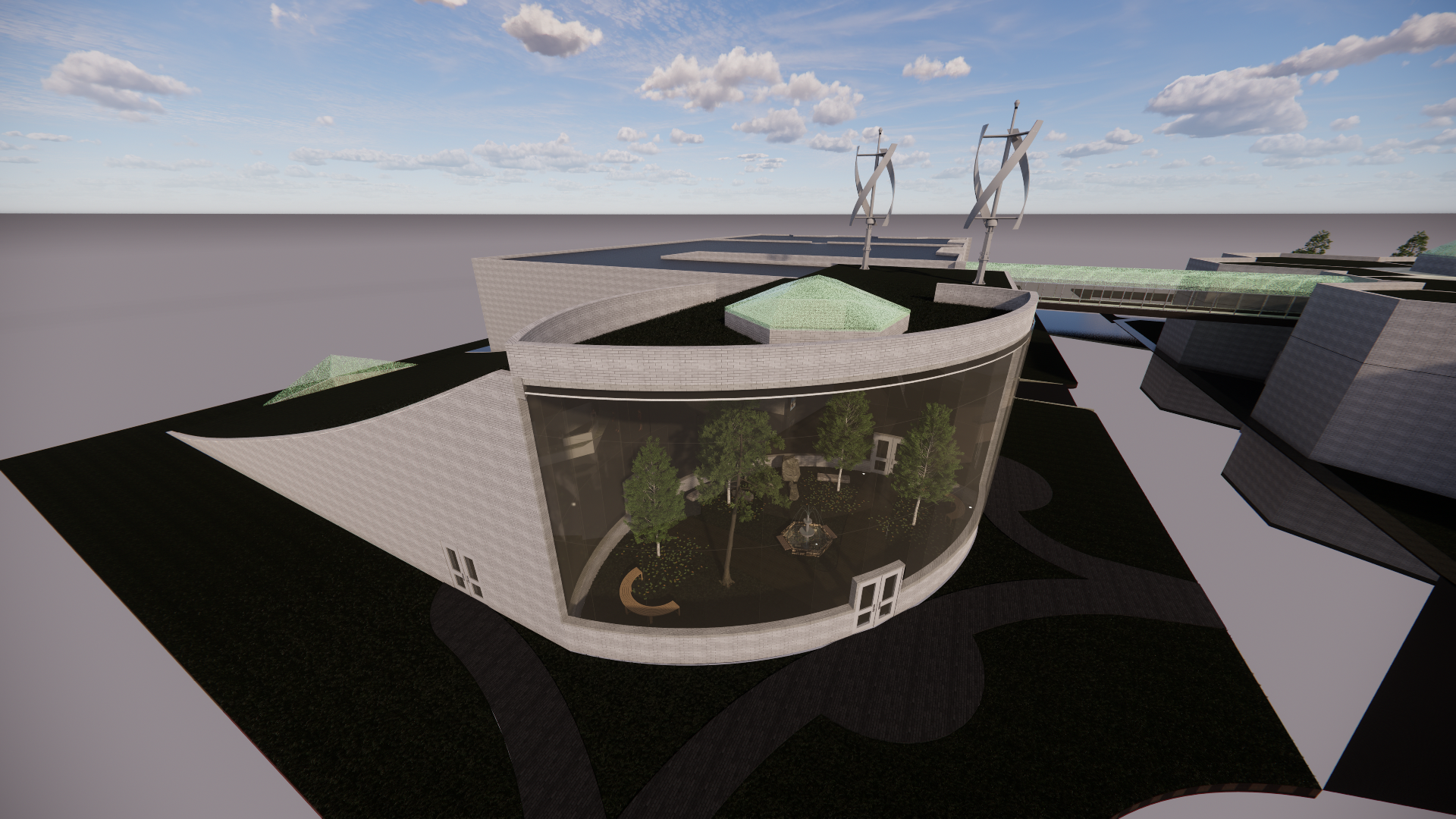

Collecting Solar/Wind energies

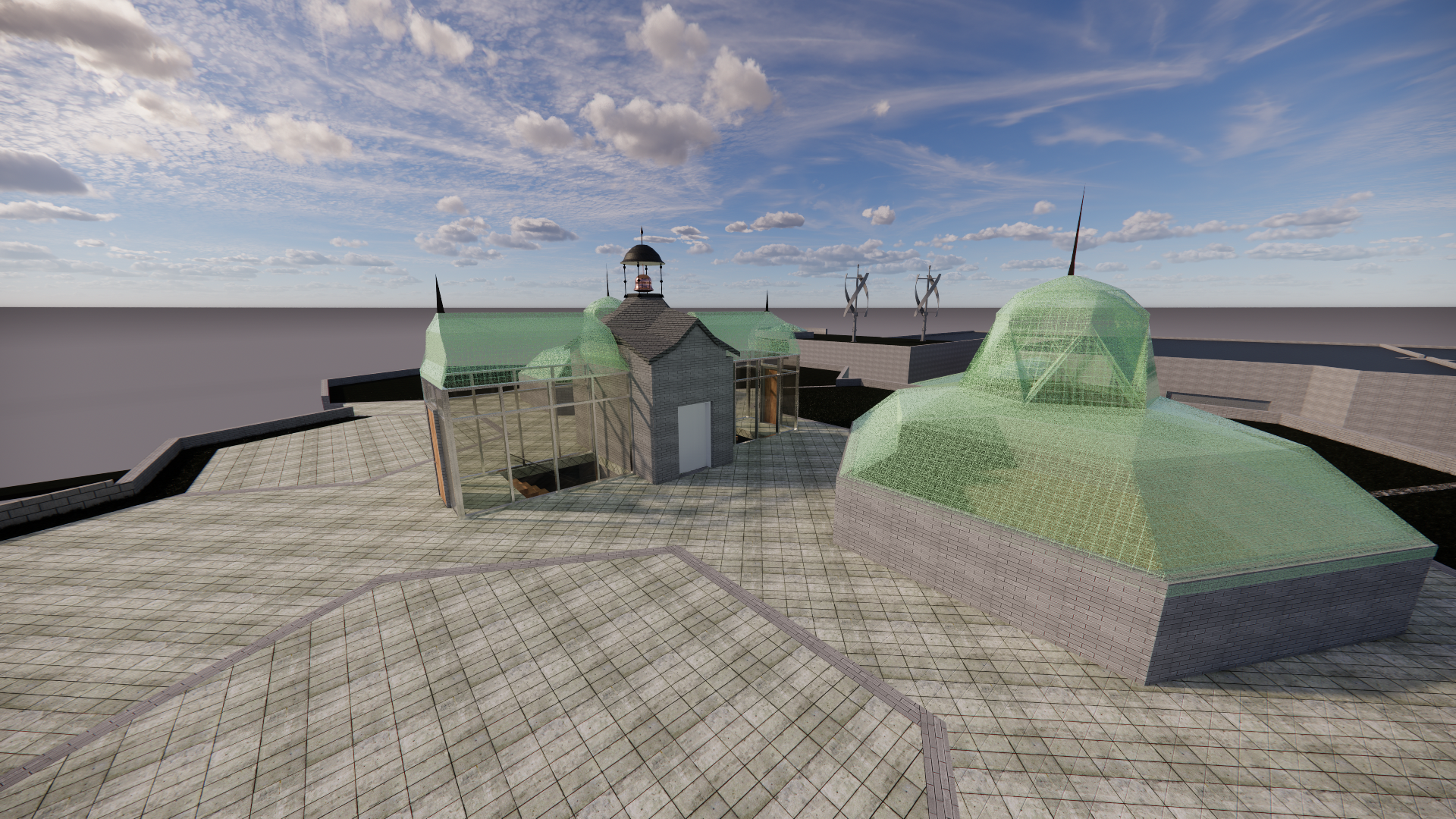

Rooftop Greenhouses

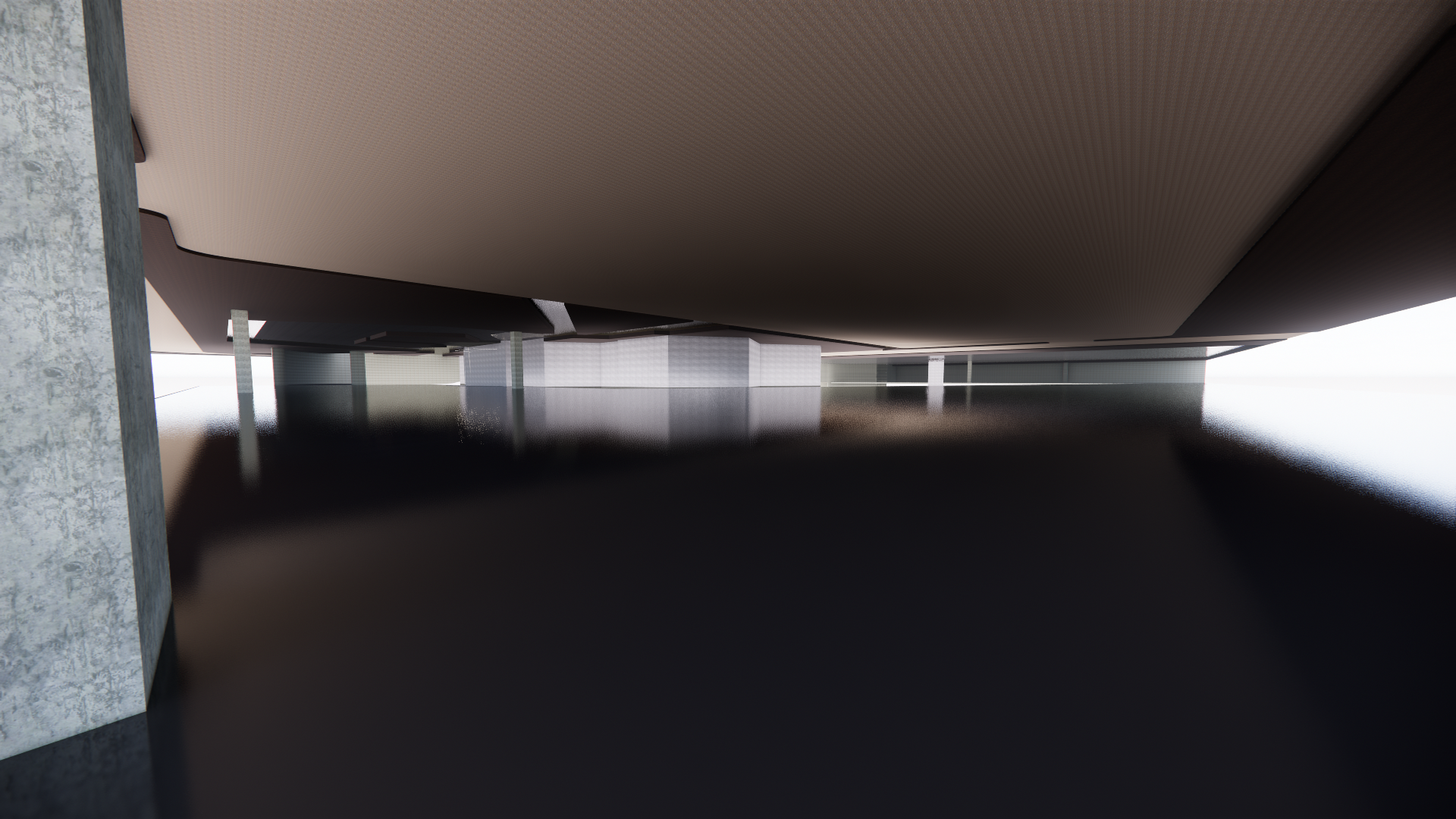

Underground Parking Garage provides ample parking

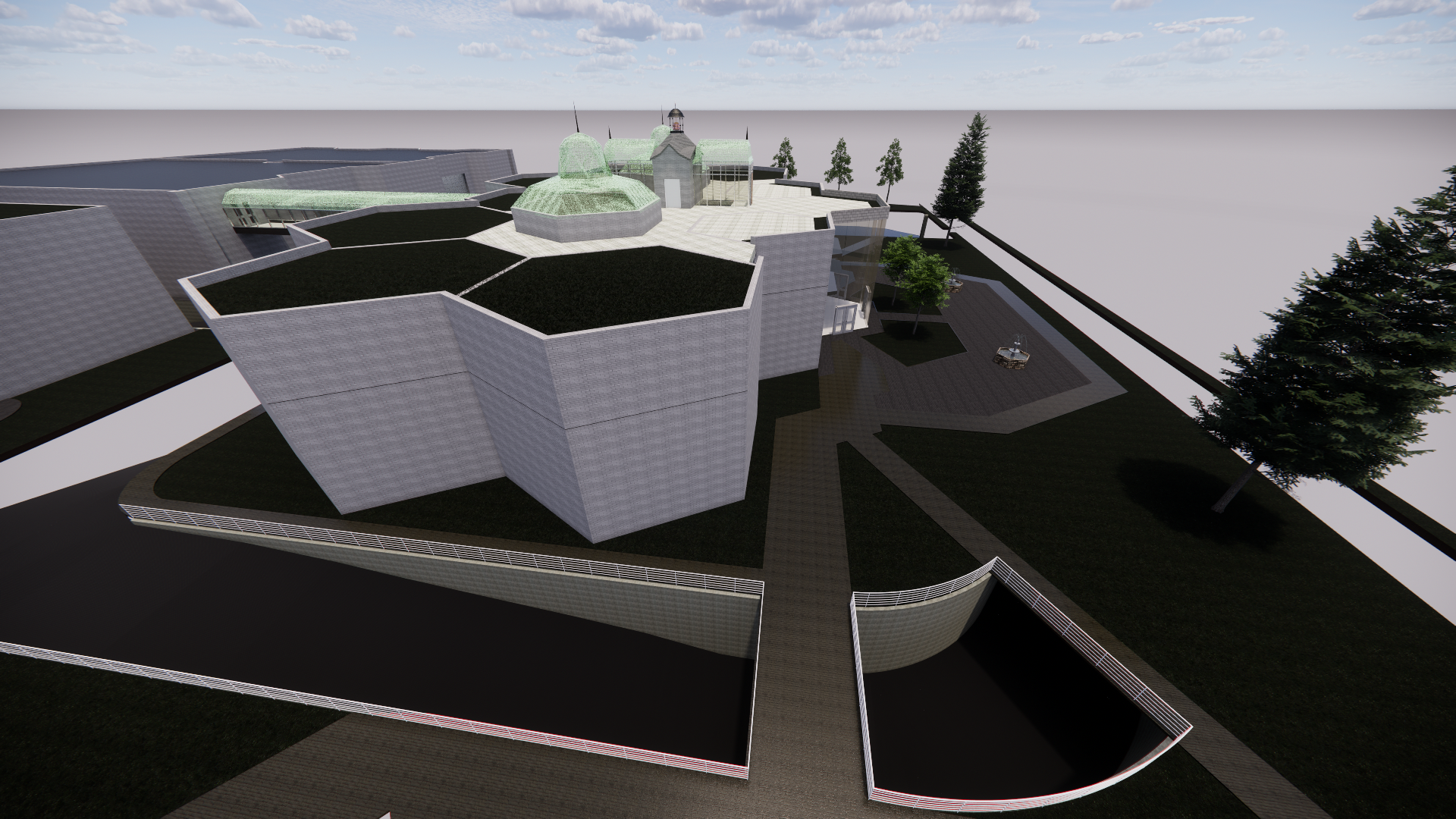

Potential for rooftop classrooms for agricultural practice

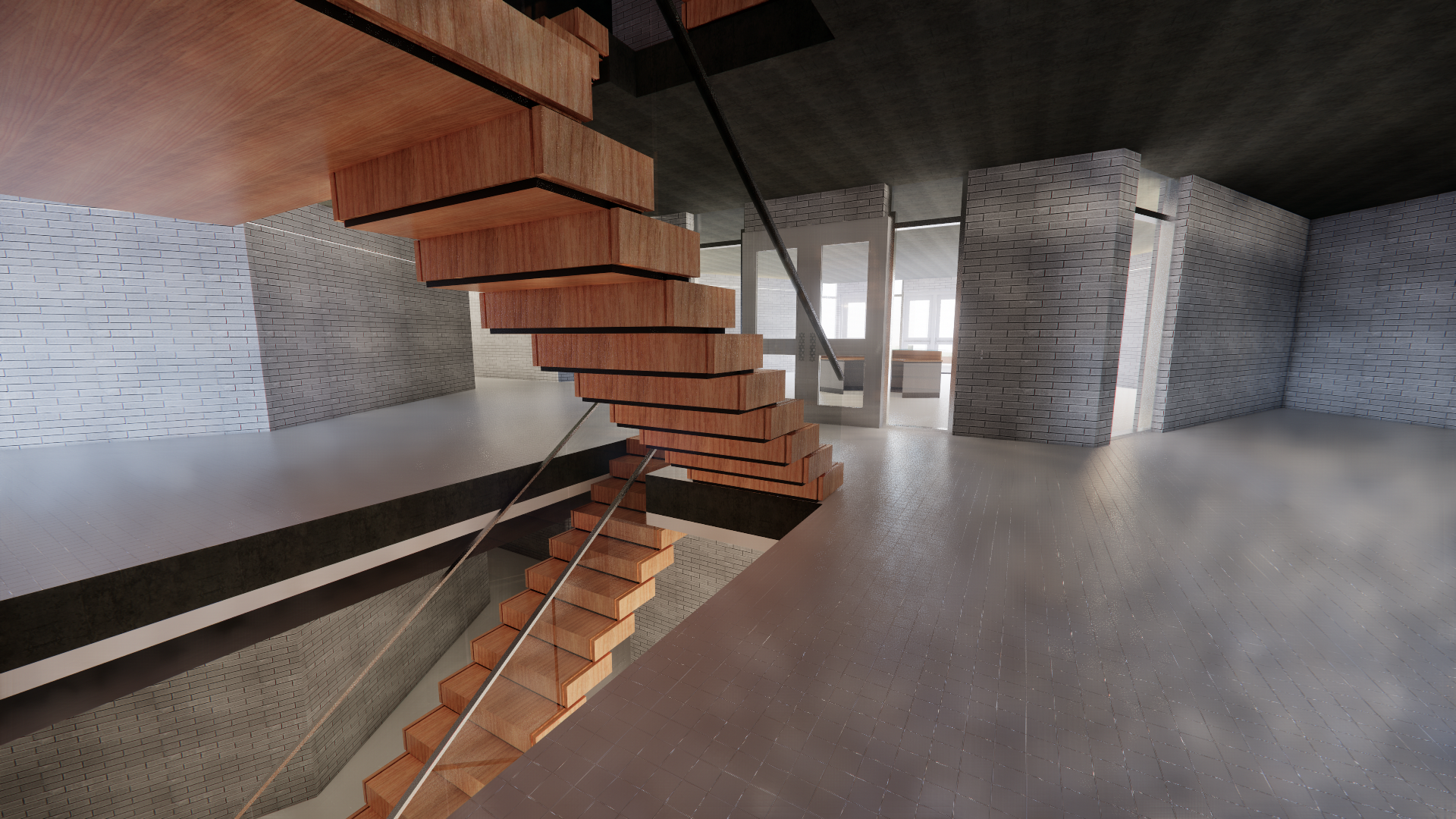

Minimalist Entry

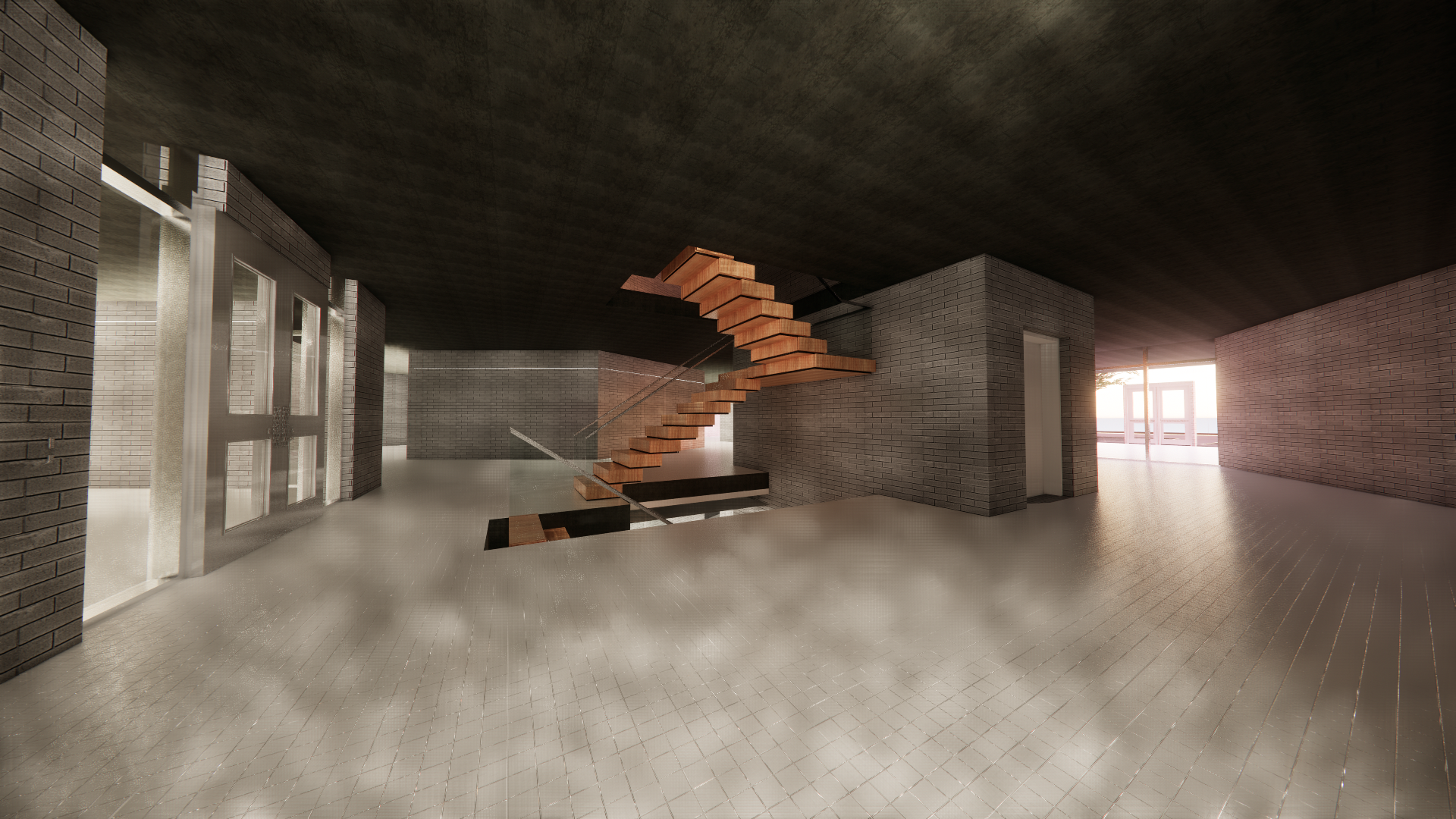

Elevator and Stair access to all 5 floors (including basement+rooftop)
